The X-Guard Macerator uses a tried-and-tested shredding concept based on the use of a perforated plate in combination with a rotating cutting head.

• Able to reduce particle size down to 5-6 millimeters
• Replaceable knives and counter-knives
• Efficient cutting system with 4 rotating knives.
• Reversible and interchangeable knives to extend the life of the cutting system.
• Simplified maintenance
• Side inspection hatches

PCM X-Guard Macerator

MVA-FF Force Feeding Pumps are ideal for centrifuged & dehydrated sludge and dewatered sludge recovery further to mechanical dehydration (eg to a belt-press, screw-press, centrifuge, filterpress)

Construction:

• PCM Chloroprene stator with hole for temperature sensor
• Hard chromed rotor
• Packing gland sealing with greaser
• Rectangular Hopper (1000mm X 275mm) with open Archimedean screw on the shaftline

PCM EcoMoineau™ MVA-FF Force Feeding Progressive Cavity Pumps

Viscous, pasty, sticky, high-solids, or solid-containing fluids are common in many environmental applications. They are suited to harsh conditions requiring the use of well-adapted pumps. The MSH is constructed with an Archimedean screw for manual or gravity feeding of highly viscous or low flow fluids. Depending on the product being pumped, you will have the choice of using the closed or open Archimedean screw.

Open Archimedean screw: perfectly meeting the transfer constraints of sticky products, it allows the fluid to circulate between its core and its perforated coils, thus avoiding any risk of compaction. The Archimedean screw with open coils is the best solution to the risk of possible overflow of the hoppers.

Closed Archimedean screw: specially designed for non-sticky viscous products, it offers a very high conveying efficiency thanks to the optimized surface of its turns. The Archimedean screw with closed coils guarantees optimal force feeding of the sludge.

MSH Progressive Cavity Pump with hopper

The MF will fit into small spaces thanks to a design that replaces the connecting rod with an armatureless floating stator and an elastomeric pad. The flexibility of the stator and pad allows the rotor to rotate off-center, with the rotor directly linked to the motor. This allows for a shorter pump body.

Capable of transferring a wide range of viscous or solid-based fluids, these pumps offer very good suction capacity and are ideal for diluted polymer dosing.

Construction of Ecomoineau MF Compact Progressive Cavity Pump

The PCM EcoMoineau™ MX pump is the ideal choice for industries seeking a high-performance, robust, and user-friendly pumping solution.
It is Suitable for transferring viscous and abrasive (particle-laden) fluids, and requires very little maintenance compared with lobe pump technology.

The large inspection doors create easy access to the pump body for cleaning and monitoring of pump operation.

Maintenance in place

The PCM Ecomoineau™ MX contains a multitude of design features that make installation, operation and maintenance easier than ever before.

• Rotor and stator can be replaced in a matter of minutes
• The seal can be changed by simply disconnecting the drive
• The shaft line (rotor, coupling rod, driving shaft) can be removed without disconnecting the pipes
• The integrated version comes with a smaller diameter, self-positioning mechanical seal

PCM Ecomoineau MX PCP – Maintenance In Place Breakdown

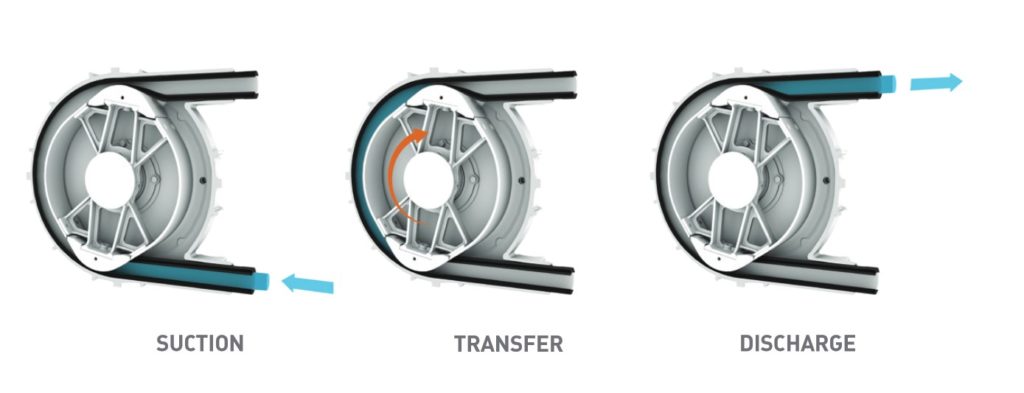

Peristaltic pumps with low operating speeds are ideal for abrasive products. The transfer is carried out inside the hose without agitating the fluids. They are also the perfect solution for handling corrosive products, as only the hose is in contact with the fluid.

The hose is the wear part within the pump, so maintenance is low-cost, and easily handled on-site.

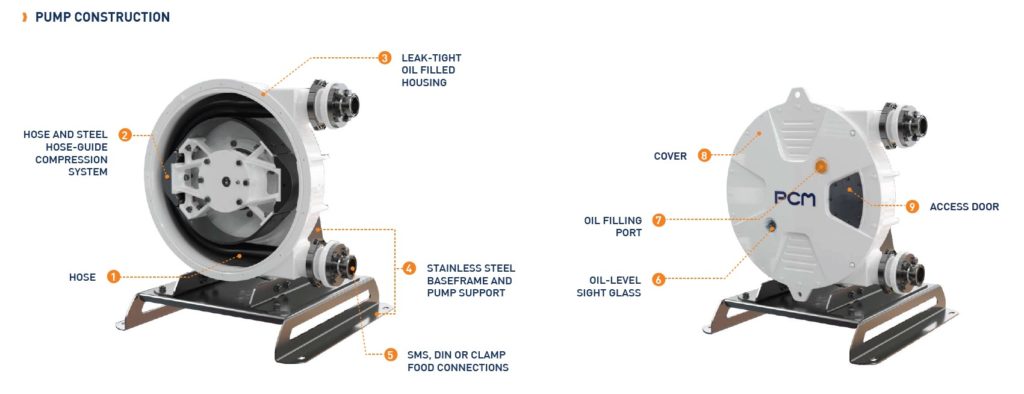

• Cast iron body
• EPDM or NR hose
• No dynamic sealing – no expensive sealing system to replace
• Low energy costs thanks to low operating speeds
• 100% leakproof body to hold the fluid in case of hose rupture

The modular, eco-friendly design uses 10% less power than most other PCP on the market. Designed to minimise operating costs, the Ecomoineau is easy to operate and service. The smaller footprint makes it easier to install and integrate into your process too!

The pump has been designed with the food and cosmetic industries in mind. The parts in contact with the product are food grade seals, elastomers, or 316 stainless steel with a 304 stainless base frame.

The pump is driven by a direct-mounted light alloy maintenance-free motor with IP55 protection. The part of the diaphragm in contact with the pumped liquid is in chemically inert PTFE, and pumpheads are available in several material combinations.

The capacity of the pump is set by adjusting a micrometre graduated dial that can be locked in position.

The hose is the wear part within the pump, so maintenance is easily handled on-site. Downtimes are short, thanks to a unique hose quick release allowing hose change in only a few minutes

Various pump constructions and a wide choice of elastomer hoses are available. For food grade applications, black nitrile NBA hoses are available A 21CFR177.2600 and CE 1935/2004 certifies they can withstand temperatures ranging from 0°C to 80°C
