Water Treatment – Thermaflo https://www.thermaflo.co.nz Liquid Food Process Systems Tue, 21 Jan 2025 02:51:22 +0000 en-NZ hourly 1 https://wordpress.org/?v=6.8.2 https://www.thermaflo.co.nz/wp-content/uploads/2022/04/cropped-TF-Icon-32x32.png Water Treatment – Thermaflo https://www.thermaflo.co.nz 32 32 Decanter Centrifuge D https://www.thermaflo.co.nz/equipment/decanter-centrifuge-d/ Thu, 22 Aug 2024 02:08:09 +0000 https://www.thermaflo.co.nz/?post_type=product&p=16687 Model Solid Capacity (Kg/hr) Hydraulic Capacity (m3/hr) Installed Power (kW) D2 10 - 800 0.5 - 15 7.5 - 20 D3 20 - 2000  1 - 30 10 - 45 D4 30 - 3000 3 - 50 15 - 60 D5 50 - 5000 3 - 80 22 - 132 D6 100 - 10000 10 - 170 55 -200 D7 200 - 15000 20 - 250 75 - 245 D10 300 - 20000 30 - 370 132 - 245   Applications:
  • Thickening and dewatering of municipal wastewater
  • Treatment of drinking water sludge by high performance rotor
  • Dewatering of desalination sludge and municipal solid waste
  • Dredging/drilling mud
  • Pulp and paper sludge
   ]]> The Andritz Decanter Centrifuge D can handle various flow rates, and types of sludge, providing you with state-of-the-art separation for your wastewater plant.

The Andritz Decanter Centrifuge D is suitable for a range of processes:

  • Dewatering
  • Thickening
  • Clarification
  • Classification
  • 3-phase separation



Key Energy Saving Features:

  • The High Hydraulic Pressure (HHP) design of the rotating assembly reduces the discharge radius of the clarified liquid (centrate). Besides improved separation characteristics, this design helps to recover the kinetic energy of the fluid to reduce energy consumption by up to 15%.
  • Working the same way as a jet engine, the TurboJet weir plates recover the remaining kinetic energy of the clarified liquid. By creating liquid jets pointing in the opposite direction to the bowl rotation, the reaction force thus supports bowl rotation. The TurboJet weir plate reduces total power consumption by up to 30% as a stand-alone feature.
  • Two drive systems: a regenerative back drive and a direct drive. Whereas common back drive systems dissipate the braking energy of the scroll into
    heat, the regenerative back drive recovers this energy and feeds it back to the main motor. The direct drive system feeds the scrolling power directly to the scroll and therefore avoids recirculation losses, thus reducing total power consumption by another 5%.
  • The unmatched TurboWISE solution is key to performance in the raw material feed chamber. The polyurethane liners of the TurboWISE system can be replaced easily on site and serve to accelerate the incoming slurry efficiently. The computational fluid dynamic optimization ensures lowest flocculant consumption, significantly reduced wear, and decreases the total power consumption again by up to 2%.

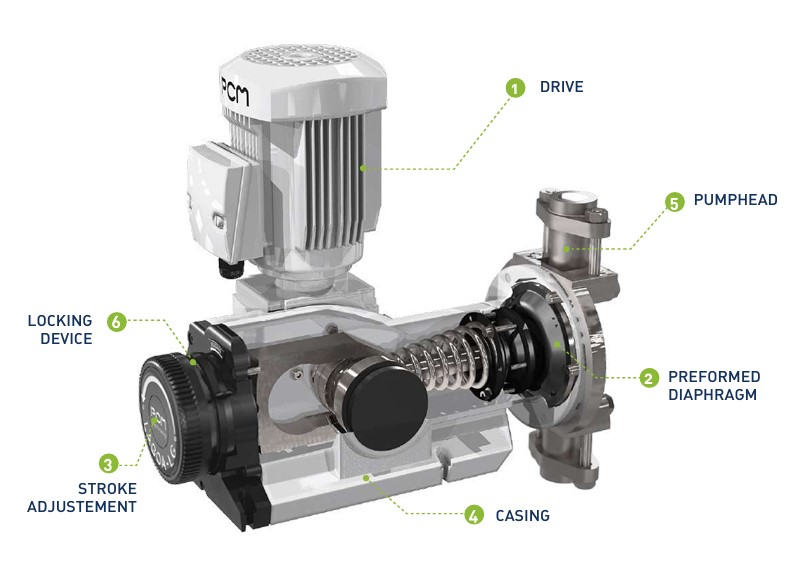

]]> Lagoa diaphragm dosing pump https://www.thermaflo.co.nz/equipment/lagoa-diaphragm-dosing-pump/ Tue, 20 Aug 2024 02:45:38 +0000 https://www.thermaflo.co.nz/?post_type=product&p=16658 Maximum Flowrate: 315L/hr per pumphead Maximum Pressure: 12 bar Maximum Temperature: 90°c Applications: CIP kitchen chemical dosing, Dosing of flocculants, Dosing of polymer, other chemical dosing,  ]]> The Lagoa diaphragm dosing pump is designed for dosing liquid additives or cleaning chemicals (acid, soda, detergent) for CIP applications.

The pump is driven by a direct-mounted light alloy maintenance-free motor with IP55 protection. The part of the diaphragm in contact with the pumped liquid is in chemically inert PTFE, and pumpheads are available in several material combinations.

The capacity of the pump is set by adjusting a micrometre graduated dial that can be locked in position.



]]> Containerised Process Plant https://www.thermaflo.co.nz/equipment/containerised-process-plant/ Tue, 03 Aug 2021 00:13:03 +0000 https://thermaflowp.icepick.co.nz/?post_type=product&p=806 Ideal for small-scale production of:
  • Milk
  • Cheese
  • Juice
  • Yoghurts
  • Plant-based dairy alternatives
  • Other beverages or liquid food
  • Liquid cosmetics (eg. skin cream)
  • Nutraceutical products
 ]]>



Perfect for startups or small scale production where flexibility is key.



The beauty of a containerised process plant is that you receive a specifically designed, fit for purpose process plant that is housed in a fully hygienic, fitted out container that is built to meet the highest international food grade standards.  Container plants are ideally suited to small scale and start-up plants where future production levels are unknown. Purchasing a container plant will help keep your costs down, while you begin production and therefore entry into your target market while allowing for future flexibility.

Technical Design: The majority of your process plant is designed and fabricated within either a 20 or 40 foot shipping container or a combination of these. Depending on your application, the only external elements of your plant will be the piping for water connection, boiler, chiller and raw product tank that may already be housed outside of the container.

Process Plant Fabrication & Workshop Commissioning: Our mechanical and electrical teams will fit out the container to meet the highest food grade standards. From there, the equipment and pipework will be fabricated and installed. Once the process plant fabrication has been completed, our team will commission the plant within our workshop. We will make sure everything is running the way that it should before we send it to the site.

Site Installation: Once both fabrication and commissioning is complete we will have the container transported to your location. When the container arrives our highly skilled engineers will come to your site and carry out all the work necessary to get you up and running.

Training: This is a very important aspect that needs a lot of consideration. Although many people that contact Thermaflo have experience working in a process plant before they purchase a container plant, there is still a lot to learn in the daily operations of the plant. Our team are able to teach all personnel involved in plant operations the correct way to operate the equipment. We will show you how to avoid waste, comply with industry standards and make your final product.

Compliance: Internationally there is very high compliance for the production of food, health care and pharmaceutical products. We will work closely with you to make sure that the products you are producing are safe for human consumption and that you are operating to the highest food safety standard. This will allow you to produce a safe, quality product, without worrying about product fault.

After Sales support: This includes both preventative maintenance service support on a scheduled programme as well as on the phone support for the operators and local tradesmen. For more information about how Thermaflo can assist you with developing a new processing plant within a hygienic shipping container go to our contact us page to leave a message or give us a call.

]]>
