Description

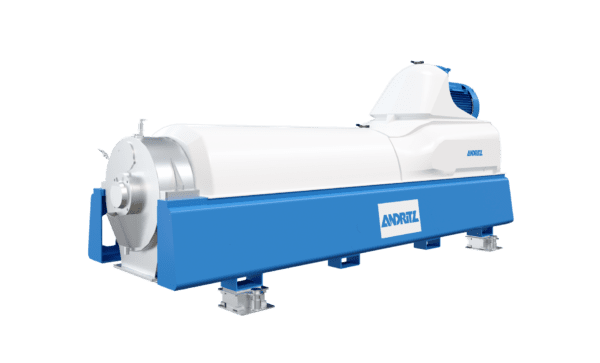

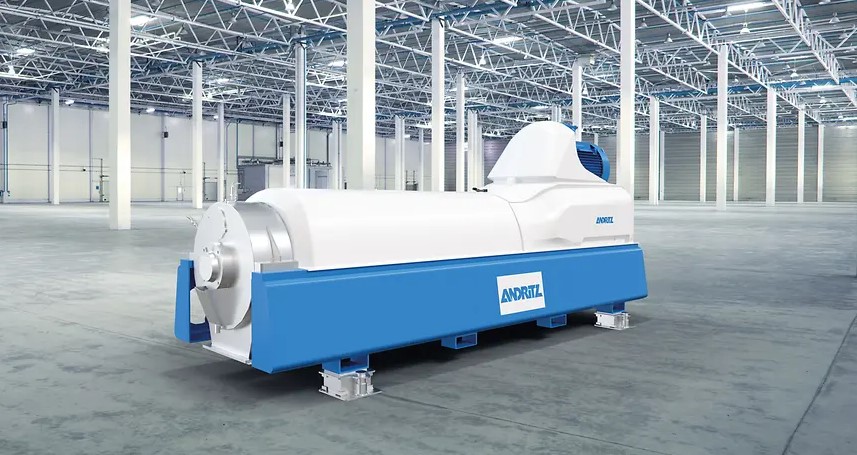

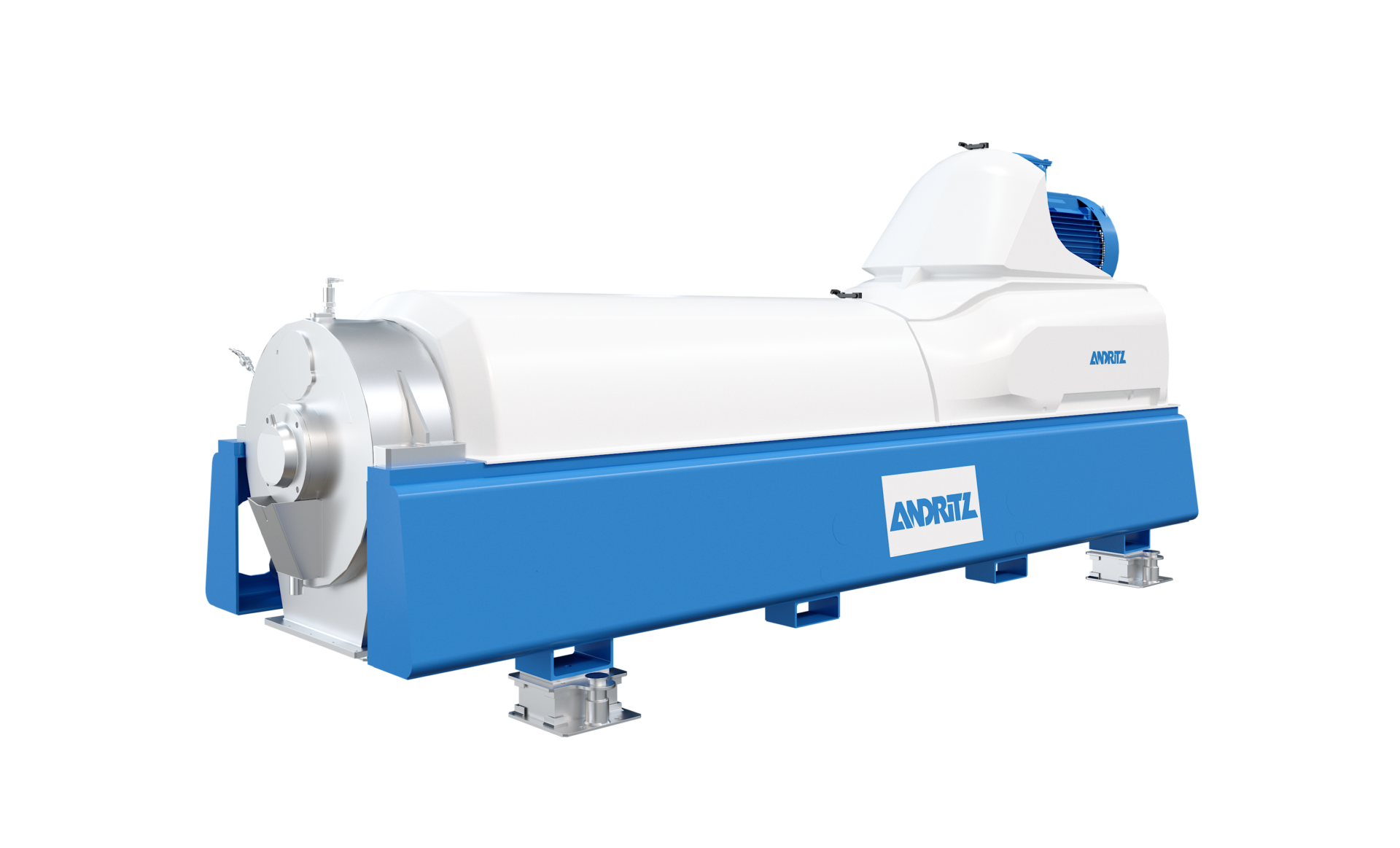

The Andritz Decanter Centrifuge D can handle various flow rates, and types of sludge, providing you with state-of-the-art separation for your wastewater plant.
The Andritz Decanter Centrifuge D is suitable for a range of processes:
- Dewatering
- Thickening
- Clarification
- Classification
- 3-phase separation
Key Energy Saving Features:
- The High Hydraulic Pressure (HHP) design of the rotating assembly reduces the discharge radius of the clarified liquid (centrate). Besides improved separation characteristics, this design helps to recover the kinetic energy of the fluid to reduce energy consumption by up to 15%.
- Working the same way as a jet engine, the TurboJet weir plates recover the remaining kinetic energy of the clarified liquid. By creating liquid jets pointing in the opposite direction to the bowl rotation, the reaction force thus supports bowl rotation. The TurboJet weir plate reduces total power consumption by up to 30% as a stand-alone feature.
- Two drive systems: a regenerative back drive and a direct drive. Whereas common back drive systems dissipate the braking energy of the scroll into
heat, the regenerative back drive recovers this energy and feeds it back to the main motor. The direct drive system feeds the scrolling power directly to the scroll and therefore avoids recirculation losses, thus reducing total power consumption by another 5%. - The unmatched TurboWISE solution is key to performance in the raw material feed chamber. The polyurethane liners of the TurboWISE system can be replaced easily on site and serve to accelerate the incoming slurry efficiently. The computational fluid dynamic optimization ensures lowest flocculant consumption, significantly reduced wear, and decreases the total power consumption again by up to 2%.
