Filmatic Rotary Bottle Filling Machines



Suitable to Fill Bottles: 250ml – 5000ml

Bottle filling rates: 1000 to 48,000 bottles per hour

Filling Temperatures: 4 Deg C – Any

Filling Methods: Level Filling, Piston Filling, Nett-Weigh

Closing Types: Heat Seal, Cap (28-38mm)

Suitable for Filling: Non – viscous products such as water, milk, juice, ice tea, edible oil (by adding vacuum valves) etc.

Hygienic Options: Available



Categories: , , , , , , ,

Description

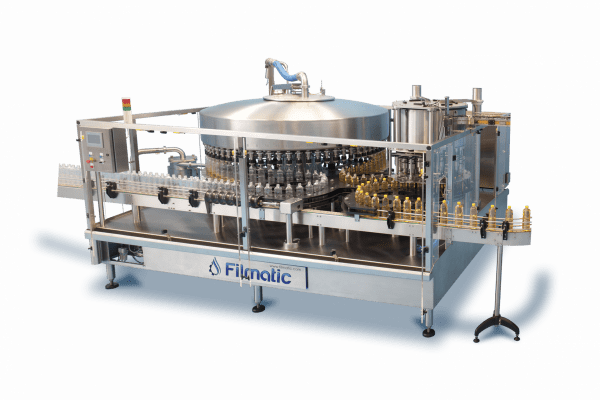

Filmatic N1 to N6 Series Fully Automatic Rotary Bottle Filling Machine

The Filmatic’s range of Rotary Bottle Filling Machines is the industry’s best for quality, high volume throughput, and level fill accuracy. This range provides our customers with the flexibility and luxury of choice in providing more than one bottle filling, capping, and labelling solutions.

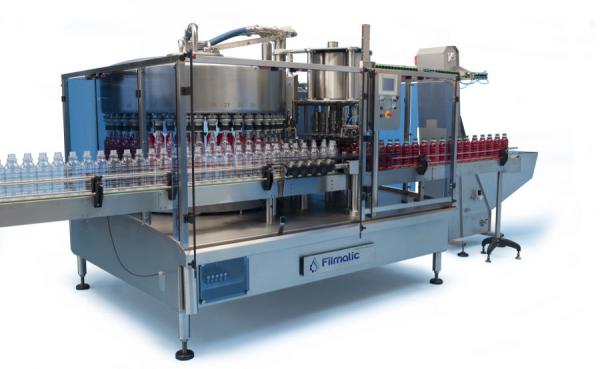

FRL45 LS B N4 Rotary Level Filler resized WEB

Bottle Filling Machine N1 N2 N3 N4 N6
Number of Filling Heads 8 and 12 10, 12 and 20 15, 18, 24 and 30 18, 24, 30, 36 and 42 30, 36, 48, 60 and 66



Small to large, start-up to mass production, the Filmatic Rotary Fillers, and in-line options are a great choice for reliability, operator friendly, minimal downtime, and maximum throughput.





Additional information

Options

bottle unscramblers, capping unscramblers, ESL (Extended Shelf-Life) options are also available, pick and place cappers, tamper proof dealing
Features & Benefits

Automated CIP cleaning systems are standard, Change-parts with machine adjustments allow for multiple bottle sizes and types to be filled by the same machine, Changeovers are normally possible in less than 15 minutes, HMI interfaced for ease of operation and precision adjustments for accuracy, The fillers are able to fill bottles from 250 ml to 5 litres, The machines feature intelligent change-parts to protect against operator error during changeovers
