Pressure: 10 bar
Flowrate: 30 m3 /h
Particle size: 32 mm max
Range: 6 models
Applications: Mechanically separated meat, Fish emulsion, Pea fibers, Tomato concentrate, Molasses, Petfood preparation, etc

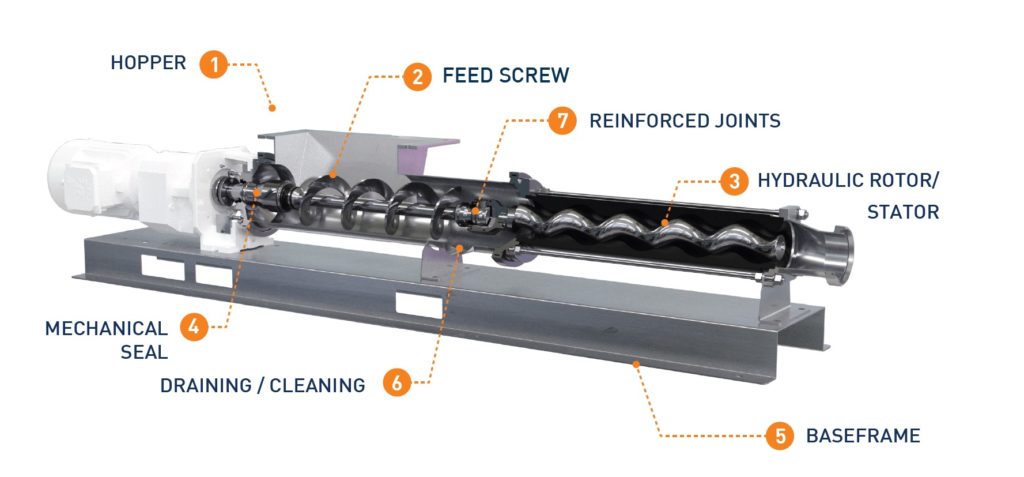

The food-grade EasyFeed progressive cavity pump is ideal for transferring highly viscous, heterogeneous with or without particles, pasty or even sticky fluids. The small footprint makes it easy to integrate and pump disassembly is straightforward for easy maintenance and replacement of wear parts.
The pump is designed to food standards to avoid any retention areas and to facilitate cleaning.
| Options | Food colorant injection ports, Frequency inverter to extend the pump's flow range, Other hopper sizes available on request, Pressure switch, SMS/DIN11851/CLAMP fittings available as standard, Stator mounted temperature sensor |
|---|---|
| Features & Benefits | For viscosities up to 80 000cp and dryness levels of 30%, Parts in contact with the product are food grade certified, Simplified Maintenance – Pump disassembly with clamp collars for immediate access to wear parts and easy clean out of place, Small pump footprint and and easy to integrate, Transfer of various products: heterogeneous or not, fluid or highly viscous, with or without particles, pasty, sticky, fatty |
